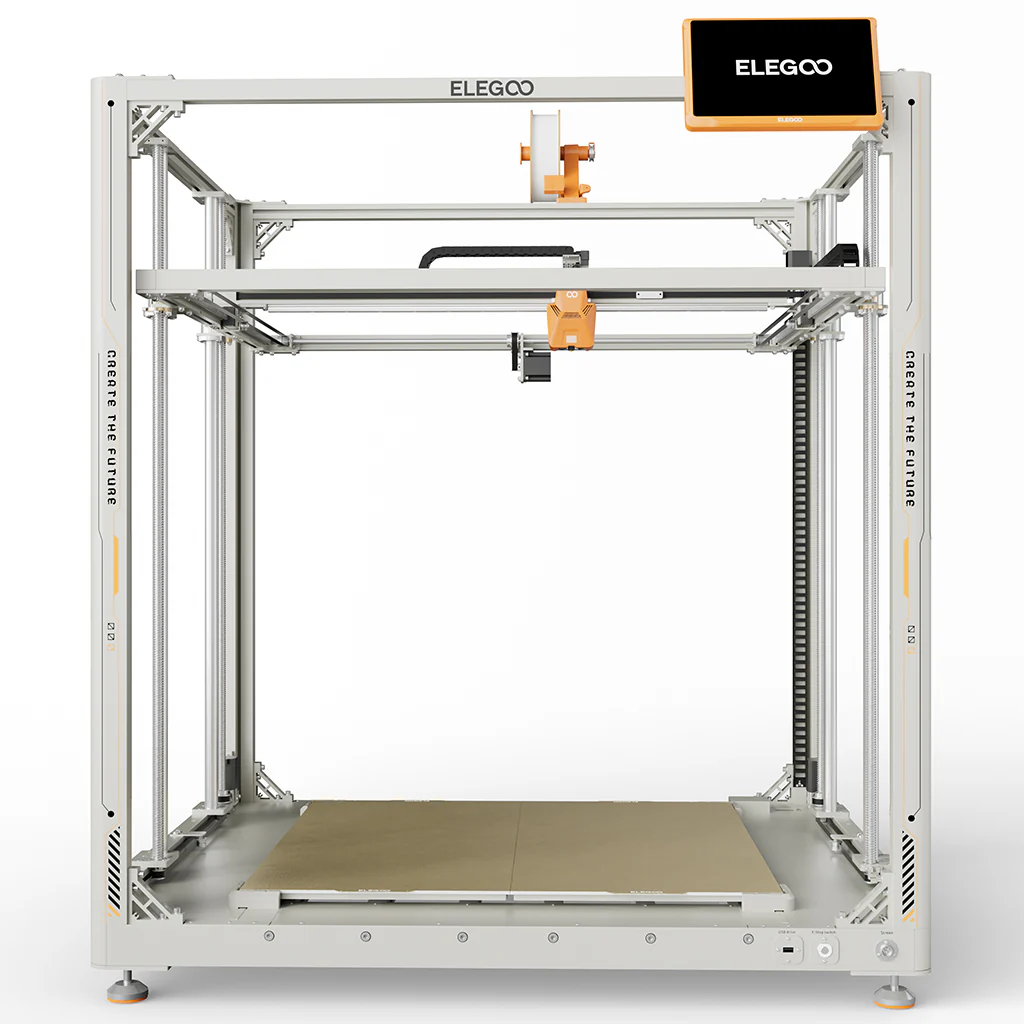

Elegoo OrangeStorm Giga 3D Printer

OrangeStorm Giga: 800x800x1000mm Giant for Industrial-Grade FDM Printing

The Elegoo OrangeStorm Giga is a colossus that transcends typical home 3D printers, forming a bridge between hobby and professional use. With a gigantic build volume of 800 x 800 x 1000 mm, it offers almost unlimited possibilities for executing huge projects in a single print. This CoreXY machine is built with industrial-grade quality and features a 64-bit quad-core processor to achieve high-speed performance up to 300 mm/s.

Key Innovations for Large-Scale Stability and Efficiency

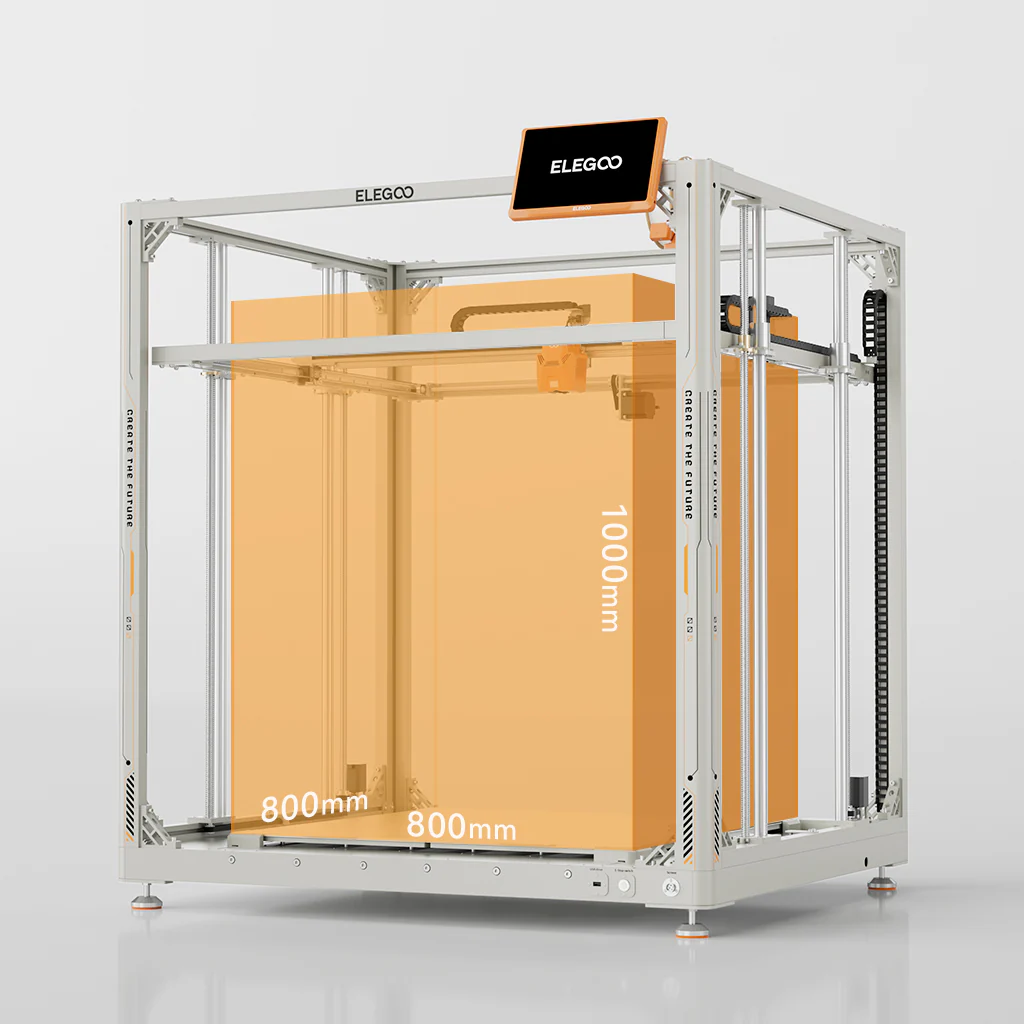

• Gigantic Build Volume: 800 x 800 x 1000 mm offers maximum space, ideal for Architectural Models, movie props, and large industrial components.
• 4 Independent Heated Beds: The print platform consists of four magnetic PEI plates (410x410 mm each) that can be heated and controlled individually, saving energy and accelerating small/medium prints.
• High-Speed Processing: Powered by a 64-bit quad-core high-performance processor to maintain speeds up to 300 mm/s—6 times faster than comparable large-format printers.

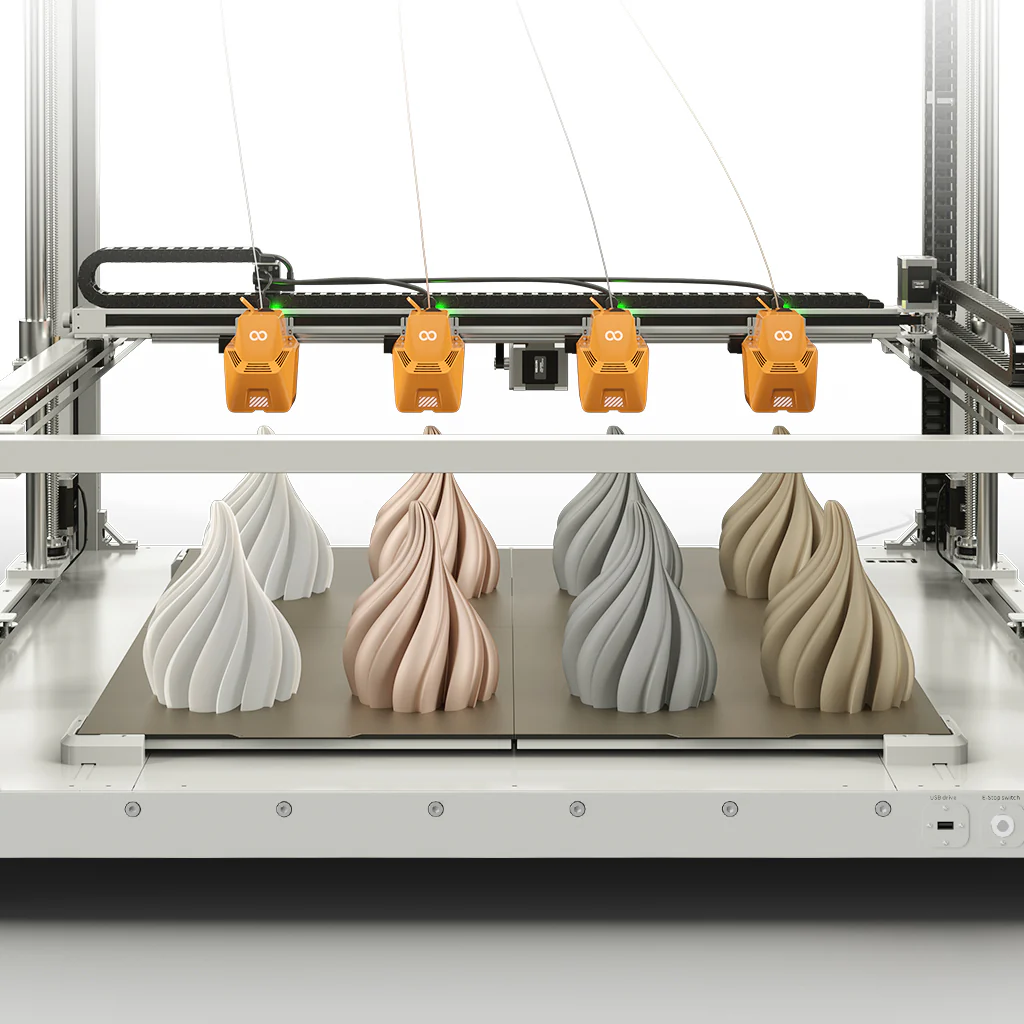

• Multi-Nozzle Ready: Optional capability to attach three additional print heads for simultaneous four-part or multi-colour printing, maximizing productivity.
• Advanced Thermal System: Improved nozzle design (Chrome-Zirconium-Copper) with a 60-watt ceramic heating pad and proximal double gear extrusion for reliable high-temperature printing (max. 300°C).
• Industrial Durability: Robust construction with linear guides on X/Y axes and special cable rails protects components, ensuring long service life under demanding use.

Your Authorized Source for the OrangeStorm Giga in Egypt

Purchasing an industrial-grade printer requires guaranteed local expertise and logistics. As an Authorized Reseller for Elegoo, we ensure your massive investment is fully supported:

• Guaranteed Local Warranty: Comprehensive 1-Year Local Warranty, fully supported by the official manufacturer’s network.
• Specialized Maintenance: Priority On-Site Service and access to original Spare Parts, minimizing industrial downtime.
• Advanced Training: Specialized Training Courses focusing on large-scale calibration, nozzle management, and multi-nozzle configuration.

Official Technical Specifications

• Build Volume (LWH): 800 x 800 x 1000 mm (The Giant)
• Printing Platform Size: 820 x 820 mm (Made of 4 Independent 410 x 410 mm PEI Plates)
• Processor: 64-bit Quad-Core High-Performance Processor (1.5 GHz)
• Max Print Speed: ≤ 300 mm/s (Recommended: 150 mm/s)
• Max Acceleration: 5000 mm/s²
• Max Print Temperature: ≤ 300 °C (Optimized High-Temp Nozzle)
• Max Heated Bed Temp: ≤ 100 °C
• Nozzle (Standard): 0.6 mm (Optional: 0.4 mm, 0.8 mm, 1.0 mm)
• Key Feature: Optional Multi-Nozzle Printing (Up to 4 Print Heads)
• Levelling: Automatic 121-Point Levelling (One-Click)
• Supported Filaments: PLA, PETG, TPU, Nylon (Wide compatibility)
• Connectivity: USB, LAN, WiFi.
